SPC Cone Fenders.

The SPC Cone Fender is an efficient fender type that is used in various applications. It has a conical body and fully rubber-embedded mounting flanges. Its refined geometry and conical shape result in a number of outstanding performance characteristics.

SPC Cone Fenders are available in heights between 300 and 2,000 mm, each in 3 different main rubber grades*, optional: overload stoppers to avoid over compression
*For intermediate rubber grades see SFT Product Catalogue page 10 - 11

Characteristics

Exceptional good energy absorption to reaction force ratio (E / R)
Outstanding energy absorption per fender weight
High shear stability
No loss of performance up to 10° approach angle
Anchor recesses for easier installation

Applications

Container & Bulk Terminals
Oil & Gas Terminals
General Cargo Terminals
Cruise Terminals
Ferry & RoRo Terminals
Navy

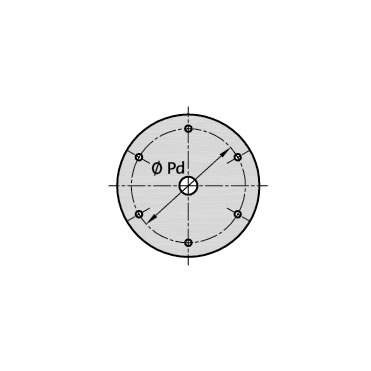

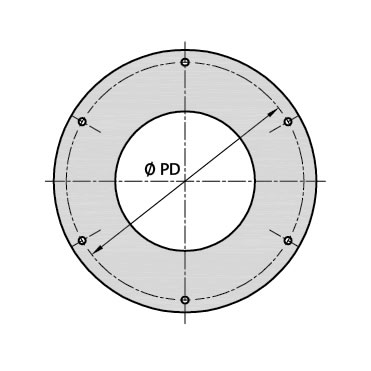

Dimensions SPC Fenders

Capacity	Low Capacity			Standard Capacity			High Capacity
Fender Sizes [mm] DxL	Energy [kNm]	Reaction [kN]	Pressure [kN/m²]	Energy [kNm]	Reaction [kN]	Pressure [kN/m²]	Energy [kNm]	Reaction [kN]	Pressure [kN/m²]
700x1500	20	78	104	26	133	172	34	173	224
1000x1500	29	78	104	47	173	172	61	225	224
1000x2000	39	147	104	68	254	172	88	330	224
1200x2000	59	167	104	91	280	172	118	364	224
1350x2500	88	245	104	152	418	172	198	543	224
1500x3000	137	343	104	232	578	172	302	751	224
1700x3000	167	372	104	282	618	172	367	803	224
2000x3500	275	510	104	454	845	172	590	1,099	224
2000x4000	324	608	104	540	1,005	172	702	1,307	224
2000x4500	373	697	104	624	1,161	172	811	1,509	224
2500x4000	451	716	104	801	1,197	172	1,041	1,556	224
2500x5500	716	1,069	104	1,200	1,788	172	1,560	2,324	224
3000x4900	863	1,059	104	1,430	1,775	172	1,859	2,308	224
3000x6000	1,109	1,383	104	1,851	2,295	172	2,406	2,984	224
3300x4500	903	1,010	104	1,498	1,690	172	1,947	2,197	244
3300x6000	1452	1638	104	2,421	2,731	172	3,147	3,550	244
