Bow and Stern Fenders.
Bow & Stern Fenders.
Tug Boat Fenders need to be reliable, stable and high abrasion resistant under extreme conditions. Tug boats are equipped with different types of rubber fenders to achieve maximum protection during operation. ShibataFenderTeam offers eight standard Tug Boat Fenders as well as customized solutions.
A complete ready to install kit including tapered ends, transition pieces, connecting plugs, end plugs, drill holes as well as numbered stern and bow fender sets are available.
ShibataFenderTeam would be pleased to receive your design input allowing us to engineer the correct type, size and overall layout of Tug Boat Fenders for you.
Below you will find the fender types used as bow and stern fenders. ShibataFenderTeam also offers Side Fenders.
For more information feel free to contact us.
Cylindrical Tug Boat Fenders.

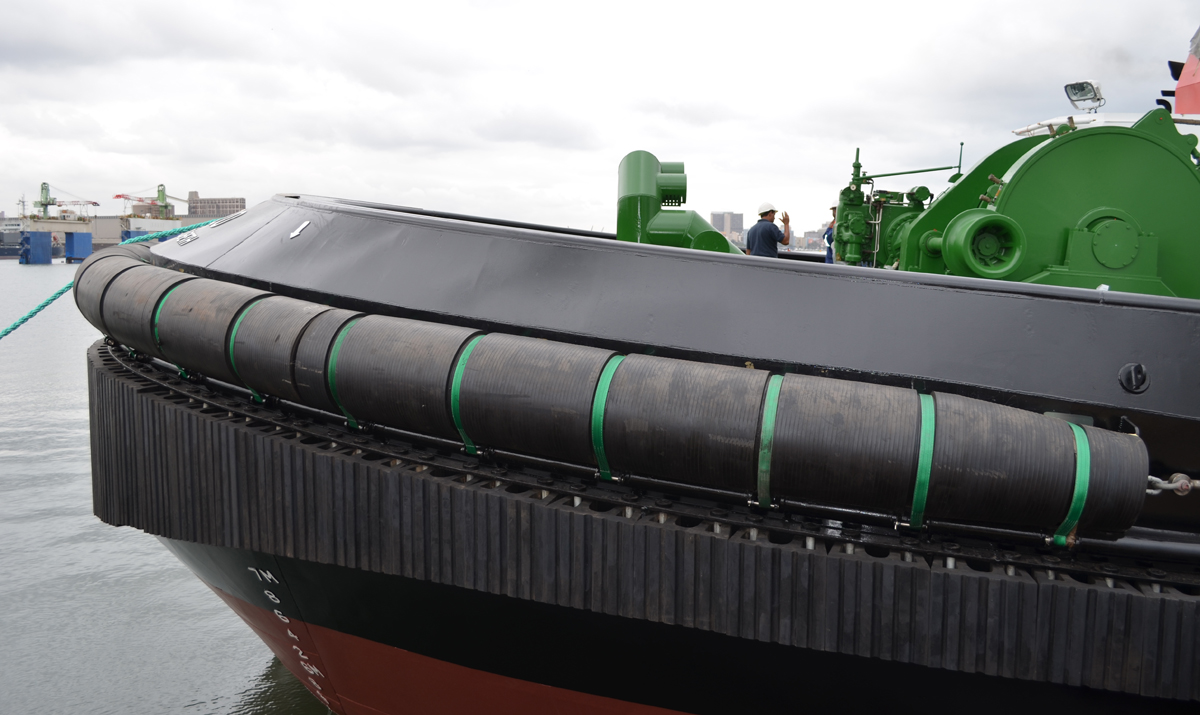

Cylindrical Tug Boat Fenders are used for protection at the bow and stern of the vessel to push against flare hulls.
The basic design is a Cylindrical Fender but with additional circumferential grooves for installation with chains or nylon straps as well as tapered ends. Cylindrical Tug Boat Fenders are typically fixed with through chains.
Cylindrical Tug Boat Fenders are available in standard diameters up to 1000 mm and in continuous or joined lengths up to 20 m (length only limited by handling and transport). Long lengths are typically separated in 2 or 3 parts.
Characteristics
- High abrasion resistant
- Non-marking navy grey color optional
- Light weight
- Ideal for tight corners
Applications
- Tug Boats
- Icebreakers
- Work & supply boats
- Other applications & structures like bridge and pile protection
| Ø D [mm] |
B [mm] |
C [mm] |
A [mm] |
Ø E [mm] |
Ø H [mm] |
Ø J [mm] |
|---|---|---|---|---|---|---|
| 200 | 150 | 530 | 500 | 100 | 75 | 150 |
| 250 | 200 | 570 | 500 | 125 | 75 | 190 |
| 300 | 225 | 600 | 700 | 150 | 75 | 225 |
| 350 | 250 | 630 | 800 | 175 | 100 | 260 |
| 400 | 300 | 670 | 800 | 200 | 100 | 300 |
| 500 | 300 | 730 | 900 | 250 | 100 | 375 |
| 600 | 350 | 800 | 900 | 300 | 125 | 450 |
| 700 | 350 | 860 | 1,000 | 350 | 125 | 525 |
| 800 | 350 | 930 | 1,000 | 400 | 125 | 600 |
| 900 | 350 | 1,000 | 1,100 | 450 | 150 | 675 |
| 1,000 | 350 | 1,060 | 1,200 | 500 | 150 | 750 |
M Fenders, W Fenders & Keyhole Fenders.
These three fender types are used for protection at the bow and stern of vessels, typically together in connection with Cylindrical Tug Boat Fenders. Their large contact surfaces are ideal for low hull pressure and grooves provide additional grip. M Fenders, W Fenders and Keyhole Fenders are available with profiled and non-profiled surface.
Characteristics
- High abrasion resistant
- Available in non-marking navy grey
- Light weight
- Ideal for tight corners
Applications
- Tug Boats
- Icebreakers
- Work & supply boats
- Other applications & structures like bridge and pile protection
| Type | A [mm] |
B [mm] |
C [mm] |
Ø D [mm] |
E [mm] |
F [mm] |
Ø Pin [mm] |
Lmax [mm] |
Weight [kg / m] |
|---|---|---|---|---|---|---|---|---|---|
| M40 | 400 | 200 | 40 | 23 | 50 | 150 | 20 | 2,000 | 56 |
| M50 | 500 | 250 | 50 | 27 | 60 | 190 | 24 | 2,000 | 89 |
| M60 | 600 | 300 | 60 | 33 | 70 | 230 | 30 | 2,000 | 132 |
| M80 | 800 | 400 | 80 | 44 | 95 | 305 | 36 | 2,000 | 233 |
| Type | A [mm] |
B [mm] |
C [mm] |
D [mm] |
K [mm] |
Lmax [mm] |
Weight [kg / m] |
|---|---|---|---|---|---|---|---|
| W32 | 320 | 200 | 280 | 100 | 50 | 2,000 | 51 |
| W40 | 400 | 250 | 350 | 110 | 55 | 2,000 | 81 |
| W48 | 480 | 300 | 426 | 135 | 65 | 2,000 | 120 |
| W50 | 500 | 450 | 420 | 90 | 75 | 2,000 | 180 |
| H [mm] |
B [mm] |
C [mm] |
Ø D [mm] |
Ø F [mm] |
Lmax [mm] |
Weight [kg / m] |
Ø Pin [mm] |
|---|---|---|---|---|---|---|---|
| 200 | 35 | 130 | 28 | 90 | 2,000 | 33 | 25 |
| 250 | 50 | 150 | 33 | 100 | 2,000 | 54 | 30 |
| 300 | 60 | 180 | 33 | 115 | 2,000 | 80 | 30 |
| 350 | 70 | 210 | 33 | 125 | 2,000 | 114 | 30 |
| Fender Type |
H [mm] |
B [mm] |
C [mm] |
Ø D [mm] |
Weight [kg / m] |
|---|---|---|---|---|---|
| WD 180 | 180 | 100 | 25 | 50 | 10.5 |
| WD 215 | 215 | 150 | 30 | 75 | 20.3 |
| WD 245 | 245 | 150 | 30 | 75 | 21.3 |
| WD 280 | 280 | 200 | 40 | 100 | 35.8 |
| WD 320 | 320 | 200 | 40 | 100 | 37.6 |
| WD 370 | 370 | 250 | 50 | 125 | 57.0 |
| WD 410 | 410 | 250 | 50 | 125 | 59.0 |
| Fender Type |
A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
|---|---|---|---|---|---|
| 300H | 300 | 360 | 40 | 200 | 280 |
| 400H | 400 | 500 | 50 | 300 | 410 |
| 500H | 500 | 562 | 50 | 300 | 472 |
| 600H | 600 | 700 | 125 | 420 | 550 |
