Cone Fender.
SPC Cone Fender.
The SPC Cone Fender is an efficient rubber fender type that is used in various applications. It has a conical body and fully rubber-embedded mounting flanges. Its refined geometry and conical shape result in a number of outstanding performance characteristics.
SPC Cone Fenders are available in heights between 300 and 2,000 mm, each in 3 different main rubber grades*, optional: overload stoppers to avoid over compression
*For intermediate rubber grades see SFT Product Catalogue (page 10 - 11) in our download section.
SPC Cone Fender Characteristics
- Exceptionally good energy absorption to reaction force ratio (E/R)
- Outstanding energy absorption per fender weight
- High shear stability
- No loss of performance up to 10° contact angle
- Sophisticated and optimized fender geometry
- Optional overload stopper
SPC Cone Fender Applications
- Container & Bulk Terminals
- Oil & Gas Terminals
- General Cargo Terminals
- Cruise Terminals
- Ferry & RoRo Terminals
- Navy
For further information feel free to contact us.
Recent news about Cone Fenders
[10.04.2025] The Port of Oakland, USA, Prepares for the Future with ShibataFenderTeam Solutions..

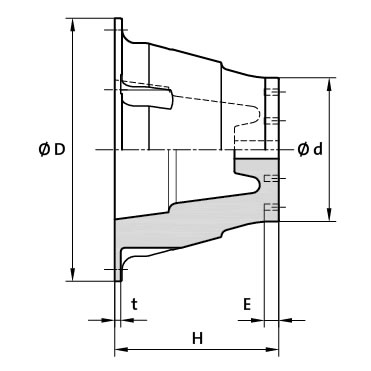

Cone Fender drawing
Dimensions SPC Cone Fenders
| Fender Size |
H [mm] |
Ø D [mm] |
Ø d [mm] |
t [mm] |
E [mm] |
Ø PD [mm] |
Ø Pd [mm] |
Anchors / Bolts |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|
| SPC 300 | 300 | 500 | 262 | 18 | 38 | 440 | 210 | 4 x M20 | 34 |
| SPC 350 | 350 | 575 | 306 | 20 | 38 | 510 | 245 | 4 x M20 | 52 |
| SPC 400 | 400 | 650 | 350 | 20 | 38 | 585 | 280 | 4 x M20 | 74 |
| SPC 500 | 500 | 820 | 435 | 22 | 45 | 730 | 350 | 4 x M24 | 148 |
| SPC 600 | 600 | 900 | 525 | 23 | 45 | 810 | 420 | 4 x M24 | 243 |
| SPC 700 | 700 | 1,120 | 615 | 26 | 72 | 1,020 | 490 | 4 x M30 | 396 |
| SPC 800 | 800 | 1,280 | 700 | 31 | 72 | 1,165 | 560 | 6 x M30 | 577 |
| SPC 900 | 900 | 1,450 | 785 | 36 | 72 | 1,313 | 630 | 6 x M30 | 846 |
| SPC 1000 | 1,000 | 1,600 | 875 | 38 | 82 | 1,460 | 700 | 6 x M36 | 1,114 |
| SPC 1100 | 1,100 | 1,760 | 963 | 40 | 92 | 1,605 | 770 | 6 x M42 | 1,525 |
| SPC 1150 | 1,150 | 1,850 | 1,010 | 41 | 92 | 1,550 | 805 | 6 x M42 | 1,731 |
| SPC 1200 | 1,200 | 1,920 | 1,050 | 46 | 92 | 1,750 | 840 | 8 x M42 | 1,951 |
| SPC 1300 | 1,300 | 2,080 | 1,140 | 50 | 105 | 1,900 | 910 | 8 x M48 | 2,446 |
| SPC 1400 | 1,400 | 2,240 | 1,230 | 53 | 105 | 2,040 | 980 | 8 x M48 | 2,987 |
| SPC 1600 | 1,600 | 2,560 | 1,400 | 64 | 105 | 2,330 | 1,120 | 8 x M48 | 4,409 |
| SPC 1800 | 1,800 | 2,880 | 1,575 | 74 | 120 | 2,620 | 1,260 | 10 x M56 | 6,618 |
| SPC 2000 | 2,000 | 3,090 | 1,750 | 80 | 120 | 2,920 | 1,400 | 10 x M56 | 9,560 |
