Element Fender.
FE Element Fenders.
The FE Element Fenders are fully molded rubber legs with embedded mounting plates. Based on V Fenders but with separate legs, FE Element Fender provide high layout flexibilities when installed behind steel panels or where mounting space is limited.
FE Element Fenders are available in heights between 250 and 1,600 mm, in standard lengths ranging from 500 to 2,000 mm, each in 3 different main rubber grades *
*For intermediate rubber grades see SFT Product Catalogue (page 22 - 23) in our download section.
FE Element Fender Characteristics
- Good energy absorption to reaction force ratio (E/R)
- High energy absorption per fender weight
- Modular and compact design with small footprint
- Vertical and horizontal mounting, typically in pairs
- Pile Fender design may use single units
- Easy maintenance & replacement
FE Element Fender Applications
- Container & Bulk Terminals
- General Cargo Terminals
- RoRo Terminals
- Navy
- Barge
For further information feel free to contact us.
Recent news about FE Element Fenders
[31.05.2023] From Denmark to Iceland along ShibataFenderTeam installations.

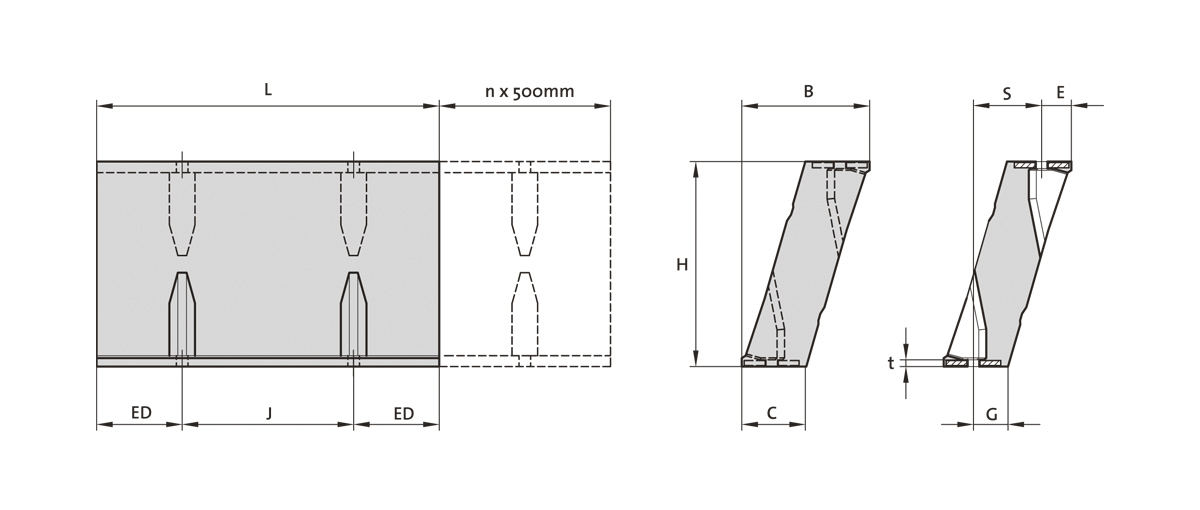

FE Element Fender Drawings
Dimensions FE Element Fender
| Fender Size |
L [mm] |
H [mm] |
B [mm] |
C [mm] |
S [mm] |
E [mm] |
t [mm] |
G [mm] |
ED [mm] |
J [mm] |
Anchors / Bolts |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FE250 | 1,000 | 250 | 158 | 80 | 78 | 40 | 17 | 40 | 50 | 300 | M20 | 30 |
| FE300 | 1,000 | 300 | 187 | 94 | 93 | 47 | 17 | 50 | 100 | 400 | M20 | 46 |
| FE400 | 1,000 | 400 | 250 | 125 | 124 | 63 | 17 | 62 | 250 | 500 | M24 | 66 |
| FE500 | 1,000 | 500 | 316 | 158 | 142 | 87 | 20 | 71 | 250 | 500 | M30 | 111 |
| FE550 | 1,000 | 550 | 344 | 172 | 170 | 87 | 20 | 85 | 250 | 500 | M30 | 132 |
| FE600 | 1,000 | 600 | 373 | 188 | 199 | 87 | 20 | 101 | 250 | 500 | M30 | 153 |
| FE700 | 1,000 | 700 | 443 | 225 | 217 | 113 | 26 | 112 | 250 | 500 | M36 | 222 |
| FE750 | 1,000 | 750 | 466 | 235 | 230 | 118 | 26 | 117 | 250 | 500 | M36 | 239 |
| FE800 | 1,000 | 800 | 498 | 250 | 240 | 129 | 26 | 121 | 250 | 500 | M36 | 268 |
| FE900 | 1,000 | 900 | 569 | 289 | 279 | 145 | 31 | 144 | 250 | 500 | M42 | 367 |
| FE1000 | 1,000 | 1,000 | 634 | 322 | 310 | 162 | 31 | 160 | 250 | 500 | M42 | 454 |
| FE1200 | 1,000 | 1,200 | 762 | 390 | 372 | 195 | 36 | 195 | 250 | 500 | M48 | 625 |
| FE1250 | 1,000 | 1,250 | 792 | 401 | 388 | 202 | 36 | 199 | 250 | 500 | M48 | 639 |
| FE1400 | 1,000 | 1,400 | 870 | 440 | 430 | 220 | 41 | 220 | 250 | 500 | M48 | 846 |
| FE1450 | 1,000 | 1,450 | 901 | 454 | 445 | 228 | 41 | 226 | 250 | 500 | M48 | 873 |
| FE1600 | 1,000 | 1,600 | 1,002 | 507 | 480 | 261 | 50 | 246 | 250 | 500 | M56 | 1,114 |
