Cylindrical Fender.
Cylindrical Fender.

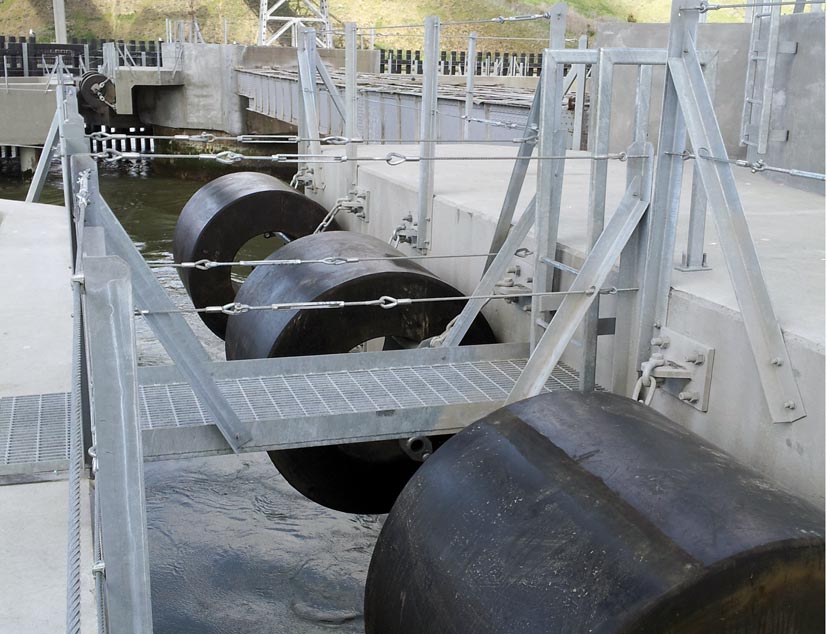

The Cylindrical Fender was the first rubber fender type to be produced with a defined performance. Installation is simple by using chains, bars, ropes or specially designed ladder brackets, depending on the fender size and substructure. The Cylindrical Fenders' proportional increase of reaction force and energy absorption all the way to the rated deflection is an advantage resulting in softer berthing.
Cylindrical Fenders are available extruded and wrapped, depending on the size. They are available in outside diameter up to 2,700 mm and inside diameter ranging from 50 to 1,300 mm, variable in length up to 20 m. The length is mainly limited by handling and transport and typically, very long Cylindrical Fenders are used for tug boat bows and are often split in 3 sections. All Cylindrical Fenders could be delivered with the respective fixings (chains, brackets, support bar, ladder brackets).
Special dimensions and features such as pre-bending or jointing can be requested.
Cylindrical Fender Characteristics
- Very robust and simple design
- Easy to install
- High abrasion resistance
- Proportional increase of energy and reaction
Cylindrical Fender Applications
- Multiple usage at different berths
- Bulk Terminals
- General Cargo Terminals
- RoRo Terminals
- Tug Boats
- Barge
For further information feel free to contact us.
Recent news about Cylindrical Fenders

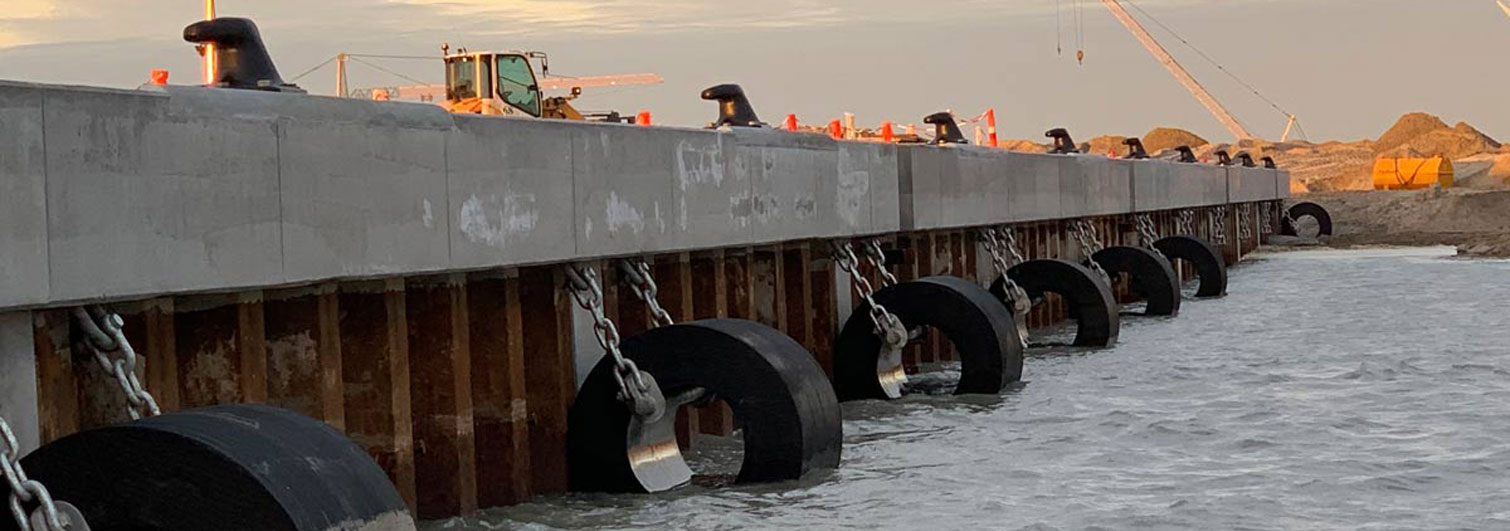

[31.05.2023] From Denmark to Iceland along ShibataFenderTeam installations.
Cylindrical Fender Drawings
| OD x ID [mm] |
E [kNm / m] |
R [kN / m] |
P [kN / m²] |
Weight [kg / m] |
|---|---|---|---|---|
| 100 x 50 | 0.8 | 43 | 547 | 7.2 |
| 125 x 65 | 1.3 | 51 | 500 | 11.0 |
| 150 x 75 | 1.8 | 65 | 552 | 16.3 |
| 175 x 75 | 2.7 | 92 | 781 | 24.1 |
| 200 x 100 | 3.3 | 86 | 547 | 29.0 |
| 250 x 125 | 5.1 | 108 | 550 | 45.3 |
| 300 x 150 | 7.4 | 129 | 547 | 65.2 |
| 380 x 190 | 11.8 | 164 | 550 | 105.0 |
| 400 x 200 | 13.1 | 172 | 547 | 116.0 |
| 450 x 225 | 16.6 | 194 | 549 | 147.0 |
| 500 x 250 | 28.0 | 275 | 700 | 181.0 |
| 600 x 300 | 40.0 | 330 | 700 | 255.0 |
| 800 x 400 | 72.0 | 440 | 700 | 453.0 |
| 900 x 450 | 86.0 | 470 | 700 | 573.0 |
| 1000 x 500 | 112.0 | 550 | 700 | 707.0 |
| 1100 x 600 | 131.0 | 541 | 574 | 800.0 |
| 1200 x 600 | 162.0 | 660 | 700 | 1,018.0 |
| 1300 x 700 | 184.0 | 650 | 591 | 1,131.0 |
| 1400 x 700 | 220.0 | 770 | 700 | 1,386.0 |
| 1400 x 800 | 208.0 | 649 | 516 | 1,245.0 |
| 1500 x 750 | 253.0 | 825 | 700 | 1,591.0 |
| 1500 x 800 | 246.0 | 760 | 605 | 1,517.0 |
| 1600 x 800 | 288.0 | 880 | 700 | 1,810.0 |
| 1600 x 900 | 273.0 | 757 | 535 | 1,650.0 |
| 1800 x 900 | 364.0 | 990 | 900 | 2,290.0 |
| 2000 x 1000 | 432.0 | 1,060 | 700 | 2,827.0 |
| 2000 x 1200 | 415.0 | 871 | 517 | 2,414.0 |
| 2200 x 1200 | 524.0 | 1,083 | 575 | 3,204.0 |
| 2400 x 1200 | 647.0 | 1,321 | 700 | 4,073.0 |
| 2700 x 1300 | 818.0 | 1,486 | 605 | 5,278.0 |
