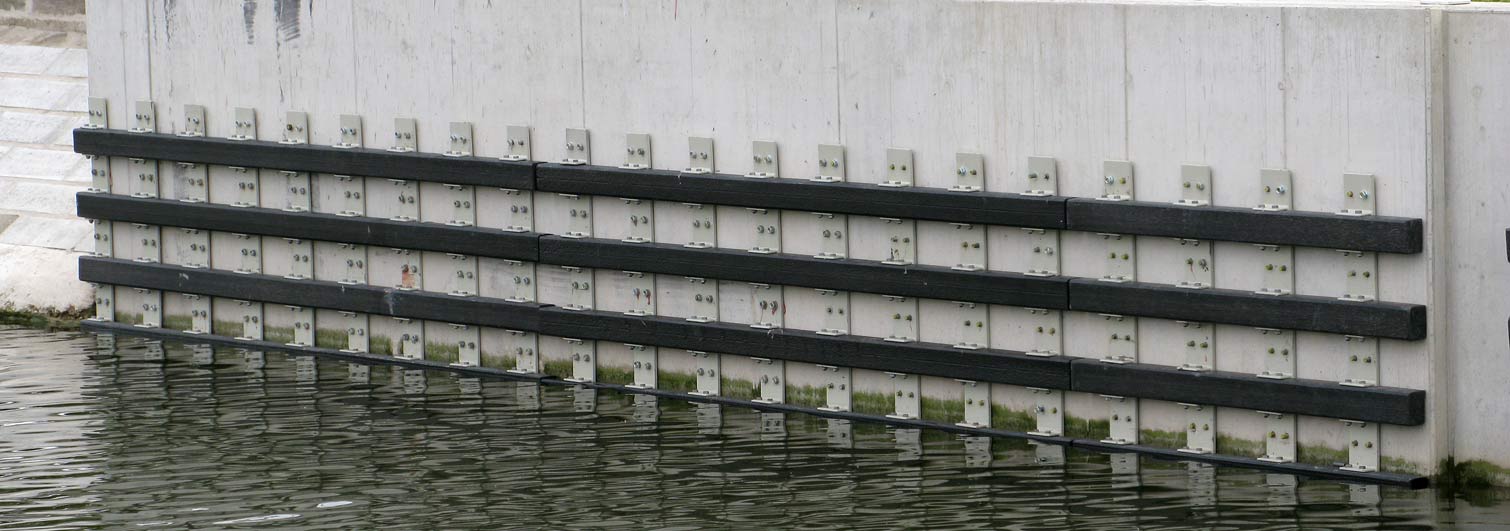

HD-PE Sliding Fender.

Text 1
Text 1
Dimensions HD-PE Fender
H
[mm]
W
[mm]
L
[mm]
B
[mm]
B1
[mm]
D
[mm]
E
[mm]
F
[mm]
ED
[mm]
PW
[mm]
Flat Bar
[mm]
Bolt Size Weight / m
[kg]
50 50 5,500 25 - 32 16 0 75~125 250~300 - M12 2.3
60 60 5,500 30 - 32 16 0 475~125 250~300 - M12 3.3
70 50 2,500 25 - 32 16 0 75~125 250~300 - M12 3.3
70 70 6,500 35 - 32 16 0 75~125 250~300 - M12 4.5
80 60 5,000 30 - 32 16 0 75~125 250~300 - M12 4.5
100 50 5,500 25 - 32 16 0 75~125 250~300 - M12 4.7
100 65 5,500 30 - 32 16 0 75~125 250~300 - M12 6.1
100 100 6,000 50 32 32 16 0 75~125 250~300 50x60 M12 9.3
120 80 5,000 40 - 40 20 0 100~150 300~350 - M16 8.9
120 120 6,000 60 40 40 20 0 100~150 300~350 65x10 M16 13.4
140 70 5,500 35 - 40 20 0~50 100~150 300~350 - M16 9.1
160 70 5,000 35 - 40 20 0~70 100~150 300~350 - M16 10.4
160 160 6,000 80 40 40 20 0~80 100~150 300~350 80x10 M16 24.1
170 120 5,500 60 40 40 20 0~80 100~150 300~350 65x10 M16 19.0
175 150 4,000 75 40 50 23 0~80 125~175 350~450 80x10 M20 24.2
180 70 5,000 35 - 50 23 0~80 125~175 350~450 - M20 11.7
180 180 6,000 90 46 50 23 0~80 125~175 350~450 80x10 M20 30.2
190 110 5,000 55 46 50 23 0~90 125~175 350~450 80x10 M20 19.4
200 75 5,000 35 46 50 23 0~100 125~175 350~450 - M20 14.0
200 100 6,000 50 46 50 23 0~100 125~175 350~450 80x10 M20 18.6
200 150 5,500 75 46 50 23 0~100 125~175 350~450 80x10 M20 27.9
200 200 6,000 100 46 50 23 0~100 125~175 350~450 80x10 M20 37.6
210 165 2,000 80 46 50 23 0~130 150~200 450~550 80x10 M20 31.9
250 150 6,500 75 46 65 28 0~130 150~200 450~550 80x10 M24 34.8
250 160 5,000 80 46 65 28 0~130 150~200 450~550 80x10 M24 37.2
250 250 5,000 125 56 65 28 0~130 150~200 450~550 100x10 M24 58.1
300 100 5,500 50 - 65 28 0~160 150~200 450~550 - M24 27.9
300 210 5,000 105 56 70 36 0~160 175~225 500~600 100x12 M30 58.6
300 300 5,000 105 72 70 36 0~160 175~225 500~600 100x12 M30 83.7
440 160 2,000 80 - 70 36 0~160 175~225 500~600 - M30 64.8
